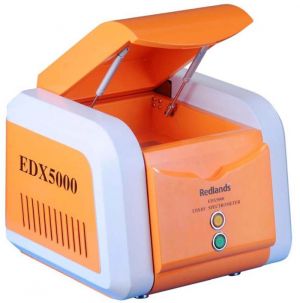

EDXRF Spectrometer
EDX 5000 |
|
PRODUCT HIGHLIGHTS
Applications
- Retail jewellery.
- Quality control in gold.
- Gold refineries.
- Iridium detection.
- Textiles.
- Hallmarking centers.
Features
- Wide scanning area-20mm.
- No need to focus the sample.
- Fast and easy to operate.
- Non-destructive.
- Hardly any running cost.
|
|
Model
|
EDX 5000
|
|
X-ray Source
|
X-ray Tube
Ti or W Cathode
|
|
HV Generator
|
50 Kv adjustable in 200 V steps Current adjustable
in 1 µA steps.
|
|
Detector
|
Semiconductor Pin diode
|
|
Detection Range
|
Ca(Z=20)to U(Z=92)
|
|
Measurement Range
|
0.1----99.99%
|
|
Measurement Time
|
30---300 seconds
|
|
Measurement Precision
|
± 0.07% - In homogeneously melted sample
(Accuracy levels in comparison With fire assay
result only)
|
|
Measurement Area
|
φ 20 mm
|
|
Working Temperature
|
15—25 ˚C
|
|
Relative Humidity
|
10—80%
|
|
System Requirement
|
External PC with windows XP & Windows 7 32-bit
|
|
Software
|
Windows Based
|
|
Power Requirement
|
230 V,50 Hz
|
|
Power Consumption
|
100 W
|
|
Machine Dimension
|
540mm×390mm×390mm
|
|
Sample Chamber Dimension
|
255mm×305mm×100mm
|
|
Weight
|
35Kg
|
|
|
|
