Gold Melting / Induction Furnaces

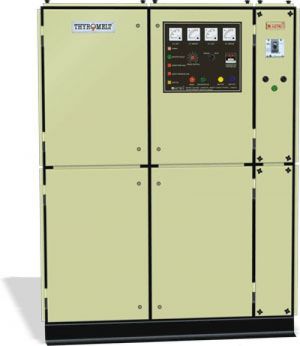

Thyromelt - 40KG


PRODUCT HIGHLIGHTS

Highlights

» All safety precautions provided

» Almost zero shutdown time

» Automatic power regulation

» Fully automatic control

» Heat and power loss reduced

» High efficiency & consistent results

» Less power consumption

» Manual or automatic tilting options

» Minimum maintenance

» Perfect homogeneous melting at low costs

» Suitable models for Graphite or Clay graphite crucibles

Benefits

» 100% Income Tax Depreciable

» Accurate temperature control

» Continuous production

» Easy to operate

» Economical and efficient in operation

» Energy saving - flame less furnace

» Increased productivity

» No products of combustion

» Safe & Convenient layout

THYROMELT is from our range of product which caters the Brass, copper, bronze etc. metal industries. THYROMELT is especially developed for Indian Precious metals sector looking towards the SILVER melting and casting industries. This optimal induction system for optimal performance of high capacity melting is widely used for the refiners; bulk Jewellery manufactures, silver bars making; to facilitate the production of specific molds and GOLD bars in banks and mints. As the system runs on Medium Frequency Induction Technology, Absolute homogeneous alloying with reduction in burning losses is achieved due to uniform temperature controlling which avoids the skin effect in METRO Induction Systems; with optional immersion thermocouple or optical pyrometer.

Advantage of melting small quantities at automatic appropriate energy consumption is an added advantage in today's competitive world. Small in size and low on budget, minimal maintenance costs and breakdown time, and host of other Features to suite your needs of fast and economical melting with assurance of timely services.

The THYROMELT Induction system is available in two different MODELS for the use of HIGH DENSITY Graphite Crucible or ordinary Clay Graphite Crucible so at to melt large capacity SILVER at economical costs. Both this systems have capability to work in auto mode or manual mode for the convenience of melting and temperature controlling, with and added facility for optional automatic tilting system for melting crucible.



Technical Specification
Power Supply
Voltage 415V 50Hz/60Hz
Absorbed Power 37 KW
Capacity of High Density 40Kg 24Kt (Au)
Maximum Temperature 1200°C
Melting Time 22 min.††
Temperature Measurement K-Type
Water re-cooling System Standarad Equipment
Colling Water Temperature 20°C - 30°C
Water Pressure -
Maximum Water Flow -
Weight (With Chilling Unit) 900Kg
Dimensions (mm) L x B x H
Induction Generator 1000 x 660 x 132
Melting Unit 950 x 1100 x 1080

  Brimfull Capacity  †† Under Standard Condition
