Godl Mine runs on Induction Technology, Absolute homogeneous alloying with reduction in burning losses is achieved due to uniform temperature controlling which avoids the skin effect in METRO Induction Systems; with option of immersion thermocouple or optical pyrometer for precise temperature controlling.
Advantage of melting small quantities at automatic appropriate energy consumption is an added advantage in today’s competitive world. Small in size and low on budget, and host of other Features to suite your needs of fast and economical melting with assurance of timely services.

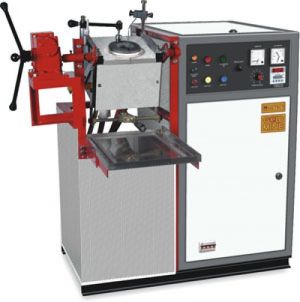

The GOLD MINE Induction system is available in two different variants GOLD MINE -10G for 10Kg melting and GOLD MINE -20G for 20Kg melting system for your need of large melt batches and ease of better melting. Both this systems have capability to work in auto mode or manual mode for the convenience of melting and temperature controlling, with and added facility for optional automatic tilting system for melting crucible. As chilling unit is standard equipment these Induction systems can be used again and again for any number of charges continuously.
Technical Specification |
Power Supply |
3Ø |
Voltage |
415V 50Hz/60Hz |
Absorbed Power |
12 KVa |
Capacity of High Density |
10Kg 24Kt (Au)† |
Maximum Temperature |
1200°C |
Melting Time |
10 min.†† |
Temperature Measurement |
K-Type |
Water re-cooling System |
Standard Equipment |
Colling Water Temperature |
20°C - 30°C |
Water Pressure |
3.5 Bar |
Maximum Water Flow |
10 ltr/min |
Weight (With Chilling Unit) |
374 Kg |
Dimensions (mm) L x B x H |
Induction Generator |
1100 x 860 x 1100 |
Chilling Unit |
540 x 780 x 810 |
|
† Brimfull Capacity †† Under Standard Condition |
