Gold Bond - 2KG runs on Induction Technology, Absolute homogeneous alloying with reduction in burning losses is achieved due to uniform temperature controlling which avoids the skin effect in METRO Induction Systems.
Advantage of melting small quantities at automatic appropriate energy consumption is an added advantage in today's competitive world. Small in size and low on budget, and host of other Features to suite your needs of fast and economical melting with assurance of timely services.

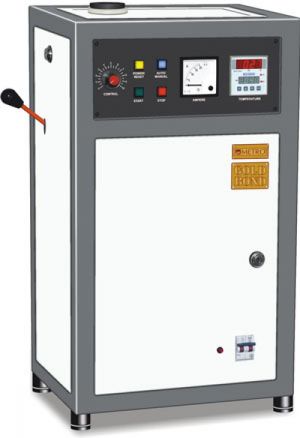

The GOLD BOND Induction system is available in two different capacities GOLD BOND -02G for 2Kg melting and GOLD BOND -04G 4Kg melting system for your convenience of better melting. Both this systems have capability to work in auto mode or manual mode for the convenience of melting and temperature controlling. As chilling unit is standard equipment
| Technical Specification |
| Power Supply |
1Ø |
| Voltage |
230V 50Hz/60Hz |
| Absorbed Power |
3.7 KVa |
| Capacity of Crucible |
2Kg 24Kt (Au)† |
| Maximum Temperature |
1200°C |
| Melting Time |
7 min.†† |
| Temperature Measurement |
K-Type |
| Water re-cooling System |
Standard Equipment |
| Colling Water Temperature |
20°C - 30°C |
| Water Pressure |
2.5 Bar |
| Maximum Water Flow |
3 ltr/min |
| Weight (With Chilling Unit) |
125 Kg |
| Dimensions (mm) L x B x H |
| Induction Generator |
410 x 360 x 750 |
| Chilling Unit |
540 x 460 x 750 |
| |
† Brimfull Capacity (High Density Crucible)
†† Under Standard Condition |
