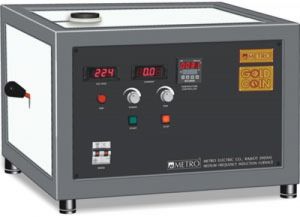

GOLD COIN runs on induction technology, absolute homogenous alloying with reduction in burning losses is achieved due to uniform temperature controlling & ultra modern technology used in manufacturing the system modules.
The advantage of small induction is faster melting, portability, sound less operation & host of other features to suite your needs of fast, economical and safe melting with assurance of timely services.
The GOLD COIN induction system is developed on IGBT technology for small melting charges conveniently. It has auto tuning & auto controlling as an added advantage. It can be easily installed at any convenient place due to small size, low weight and minimum power consumption. Due to all this advantages it is also most suitable to testing laboratories.
| Technical Specification |
| Power Supply |
1Ø |
| Voltage |
230V 50Hz/60Hz |
| Absorbed Power |
2.5 KVA |
| Capacity of High Density |
0.5Kg 24Kt (Au)† |
| Maximum Temperature |
1200°C |
| Melting Time |
5 min.†† |
| Temperature Measurement |
K-Type |
| Water re-cooling System |
Standard Equipment |
| Colling Water Temperature |
20°C - 30°C |
| Water Pressure |
2.5 Bar |
| Maximum Water Flow |
3 ltr/min |
| Weight (With Chilling Unit) |
80 Kg |
| Dimensions (mm) L x B x H |
| Induction Generator |
470 x 450 x 370 |
| Chilling Unit |
550 x 520 x 355 |
| |
| † Brimfull Capacity †† Under Standard Condition |
