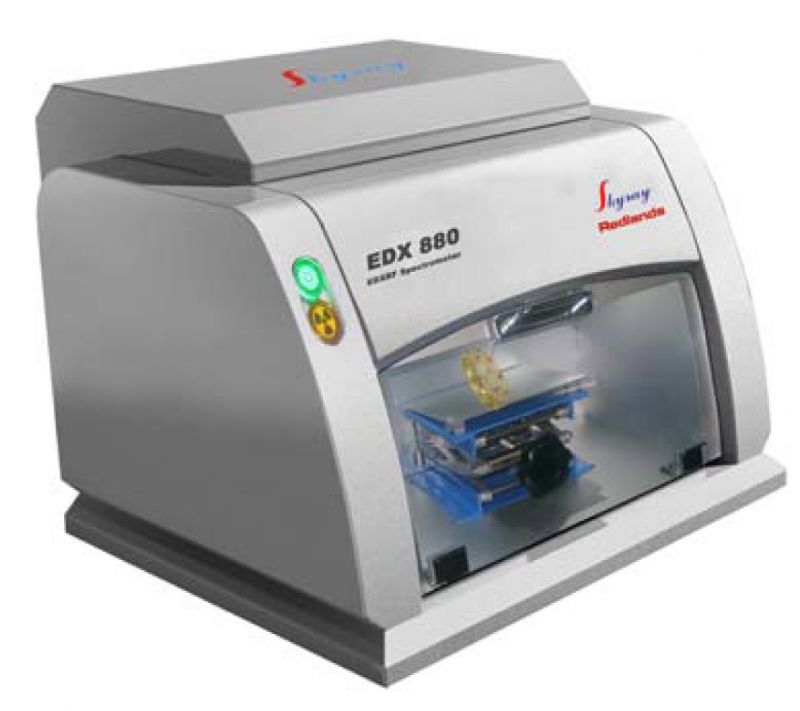

EDXRF Spectrometer
EDX 880 |
|
PRODUCT HIGHLIGHTS
Features
- Manual lift platform for measuring samples at different heights.
- Collimator is as small as 1mm, making it possible to measure micro areas as well as interior part of ornaments.
- Focusing becomes easier with zoom camera and laser pointer.
|
|
Model
|
EDX 880
|
|
X-ray Source
|
X-ray Tube
Ti or W cathode
|
|
X-ray Generator
|
50kv adjustable in 200V steps
Current adjustable in 1 µa steps
|
|
Detector
|
Gas filled proportional counter
|
|
Detection Range
|
Au, Ag, Pt, Pd, Rh, Ru,Cu, Cd, Zn, Ni
|
|
Measurement Range
|
1 - - - 99.99 %
|
|
Measurement Time
|
30 - - - 300 seconds
|
|
Measurement Precision
|
± 0.1%
|
|
Measurement Area
|
1 mm
|
|
Working Temperature
|
15 - - 25◦C
|
|
Relative Humidity
|
10 - - 80%
|
|
System Requirement
|
External PC with Windows XP/ Windows 7 32-Bit
|
|
Software
|
Windows Based
|
|
Power Requirement
|
230V , 50Hz AC
|
|
Power Consumption
|
60W
|
|
Dimention
|
450mm X 450mm X 360mm
|
|
Sample Chamber
|
300mm X 250mm X 160mm
|
|
Weight
|
39 Kg
|
|
|
|
