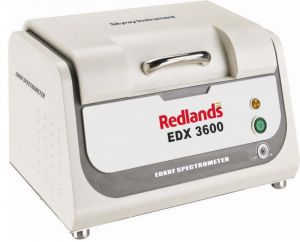

EDXRF Spectrometer
EDX 3600 |
|
PRODUCT HIGHLIGHTS
Engaged in analysis
- Cement
- Steel
- Metals
- Minerals
- RoHS analysis
- Ceramics
Features
- Triple safety protection mode.
- Independent matrix effect correction model.
- Multi-variant non-linear regression procedure.
- Electric circuit unit with high signal-to-noise ratio.
- High efficiency x-ray tube.
- Professional x-ray fluorescence analysis software for full-element measurement.
Excellent configuration
- Si-pin semiconductor detector.
- Amplifier circuit, high and low voltage power supplies, X-ray tube.
- vaccum pump(optional),pressure machine(optional)
|
|
Model
|
EDX 3600
|
|
Measurable Elements:
|
Na to U(Sodium to Uranium)
|
|
Forms of samples
|
powder, solid and liquid
|
|
Ambient Temperature
|
15°C- 25°C
|
|
Ambient Humidity
|
35%-70%
|
|
Ability of simultaneous analysis
|
20 elements
|
|
Analysis Accuracy
|
0.05%
|
|
AnalysisRange
|
1ppm- 99.99%
|
|
Measurement Time
|
60s - 200s
|
|
Energy Resolution
|
(150 ±5)eV
|
|
Input Voltage
|
AC 110V / 230V
|
|
Tube Voltage
|
5kV- 50 kV
|
|
Tube current
|
50 µA - 800 µA
|
|
Power Consumption
|
200W
|
|
|
|
