Model

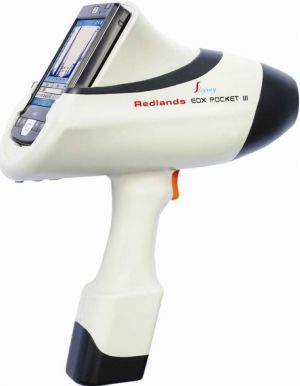

EDX Pocket III

Working Principle

XRF analysis exploiting X-ray Fluorescence Spectrometry.

Measurable Elements

 S-U(Sulphur to Uranium).

Detector

Advanced thermo-electric cooling Si-PIN Semiconductor X-ray detector with high performance and high energy resolution.

Excitation Source

Mini 40KV/50µA X-ray tube. Ag/W anode target.

Data Display

High definition and high resolution PDA(Personal Digital Assistant)with GPS function, Windows CE Operating System, stable Bluetooth Communication, personal data handing and e-mail sending.

Data Storage

Large capacity SD card and SD card reader enable the data to store on PC and print-out.

Power supply

Operating time of two fully charged Lithium batteries is no less than 8 hours.

Weight

1.4 Kilos (Without battery)

Overall size

260×325×125 mm (L × H× W)

Ambient Environment

Temperature-20°C ~ 40°C

Safety Feature

Both PDA and software operations are protected by passwords. Unauthorized people are not allowed to operate.

Standard accessories

Shock-pressure & water-proof carrying case with padlock,110v/230v general purpose charger, large capacity SD memory card, SD card reader, two 4000 mAh lithium batteries, lithium battery charger ,PDA, accessories ,lab test stand(optional),etc.
