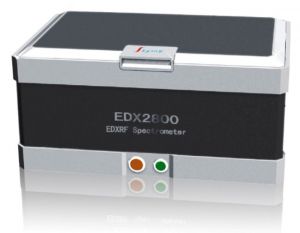

EDXRF Spectrometer
EDX 2800 |
|
PRODUCT HIGHLIGHTS
Applications
- Elements analysis
- Plating thickness
- Rohs Testing
- Quality Control in gold
- Gold Refinery
- Hall Marking Centres
Features
- The detection limit of the hazardous substances (Cd/Pb/Cr/Hg/Br) in ROHS directive can reach 1 ppm
- Designed and developed for ROHS detection
- Selected filter automatically
- Switch collimators automatically and freely
- Electro-refrigeration Si-PIN semiconductor detector
- Enhanced metal element sensitivity analyzer
Optional features
- Software for checking , plating thickness.
- Software for detecting 77 elements from Sulphur to Uranium.
|
|
Model
|
EDX 2800
|
|
Range of measurable elements
|
S to U ( Sulphur to Uranium )
|
|
Measurement time
|
60-300s
|
|
Element analysis accuracy
|
± 0.07%
|
|
Plating thickness accuracy
|
± 0.01 µm
|
|
RoHS accuracy
|
± 10% of the content
|
|
Energy resolution
|
165±5eV
|
|
High voltage
|
5-50kV
|
|
Tube current
|
50- 800 µA
|
|
Ambient temperature range
|
15-25 ˚C
|
|
Power supply
|
AC 230V, 50Hz
|
|
Weight
|
70Kg
|
|
The element content range can be tested
|
1ppm-99.99%
|
|
|
|
