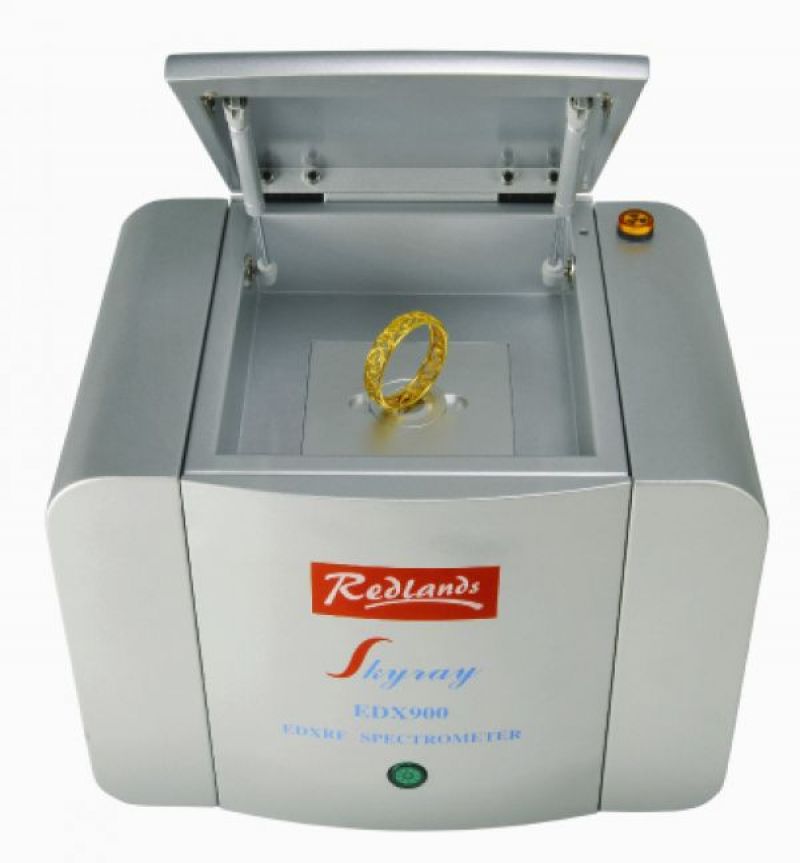

EDXRF Spectrometer
EDX 900 |
|
PRODUCT HIGHLIGHTS
Applications
- Retail jewellery.
- Quality control in gold.
- Gold refineries
Features
- Wide scanning area-20mm.
- No need to focus the sample.
- Fast and easy to operate.
- Non-destructive.
- Hardly any running cost.
|
|
Model
|
EDX 900
|
|
X-ray Source
|
X-ray Tube
Ti or W Cathode
|
|
HV Generator
|
50 Kv adjustable in 200 V steps Current adjustable 1 µA steps.
|
|
Detector
|
Gas filled proportional counter
|
|
Detection Range
|
AU,Ag,Pt,Pd,Rh,Ru,Cu,Cd,Zn,Ni
|
|
Measurement Range
|
1----99.99%
|
|
Measurement Time
|
30---300 seconds
|
|
Measurement Precision
|
± 0.1% - In homogeneously melted sample(Accuracy levels in comparison With fire assay result only)
|
|
Measurement Area
|
φ 20 mm
|
|
Working Temperature
|
15—25 ˚C
|
|
Relative Humidity
|
10—80%
|
|
System Requirement
|
External PC with windows XP & wnidows 7 32-bit
|
|
Software
|
Windows based
|
|
Power Requirement
|
230 V,50 Hz
|
|
Power Consumption
|
70 W
|
|
Machine Dimension
|
500mm×400mm×390mm
|
|
Sample Chamber Dimension
|
255mm×305mm×120mm
|
|
Weight
|
30Kg
|
|
|
|
